Model Whirlpool 1433^1A GAS RANGE – Common Parts & Diagrams

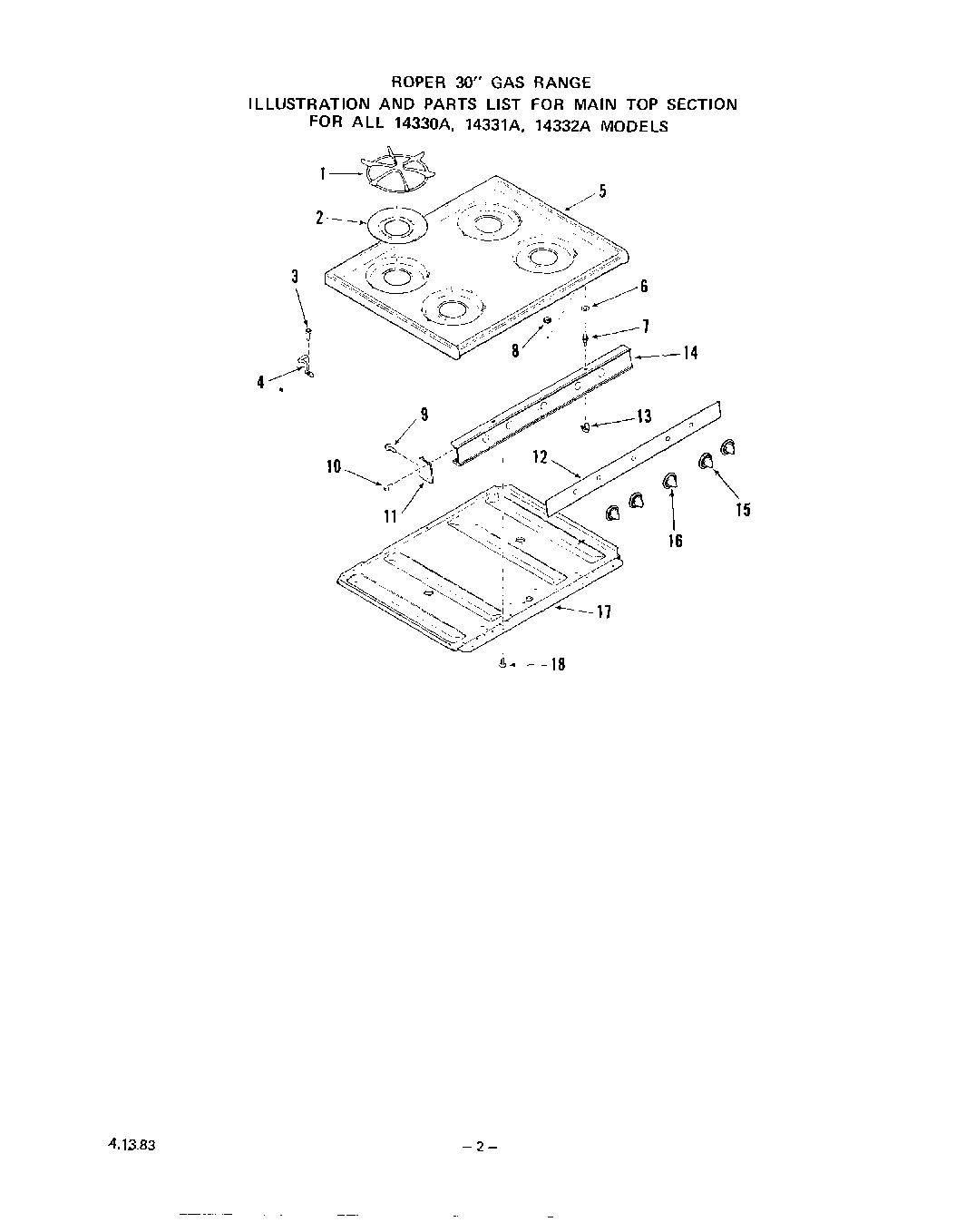

03 - BURNER

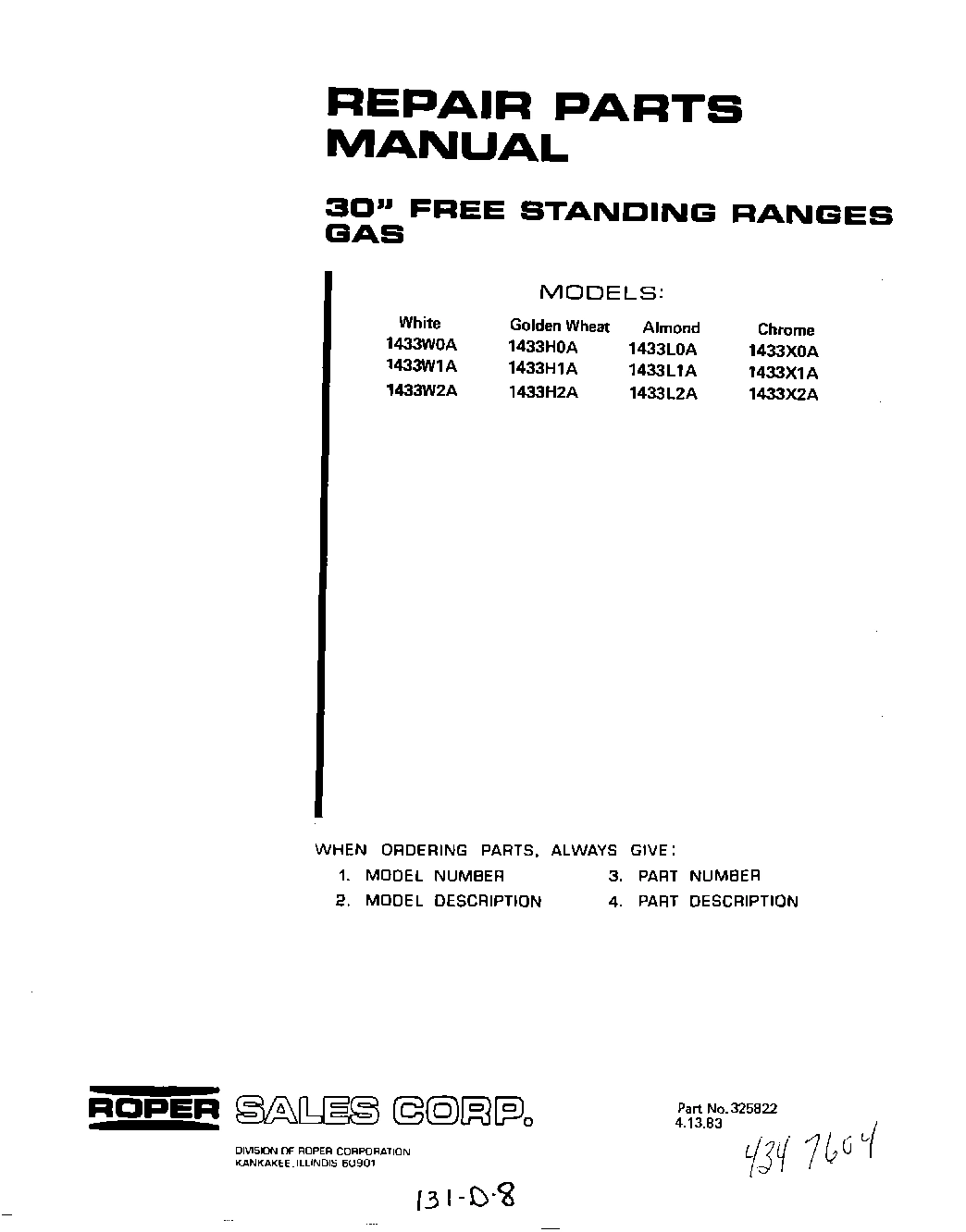

01 - BACKGUARD

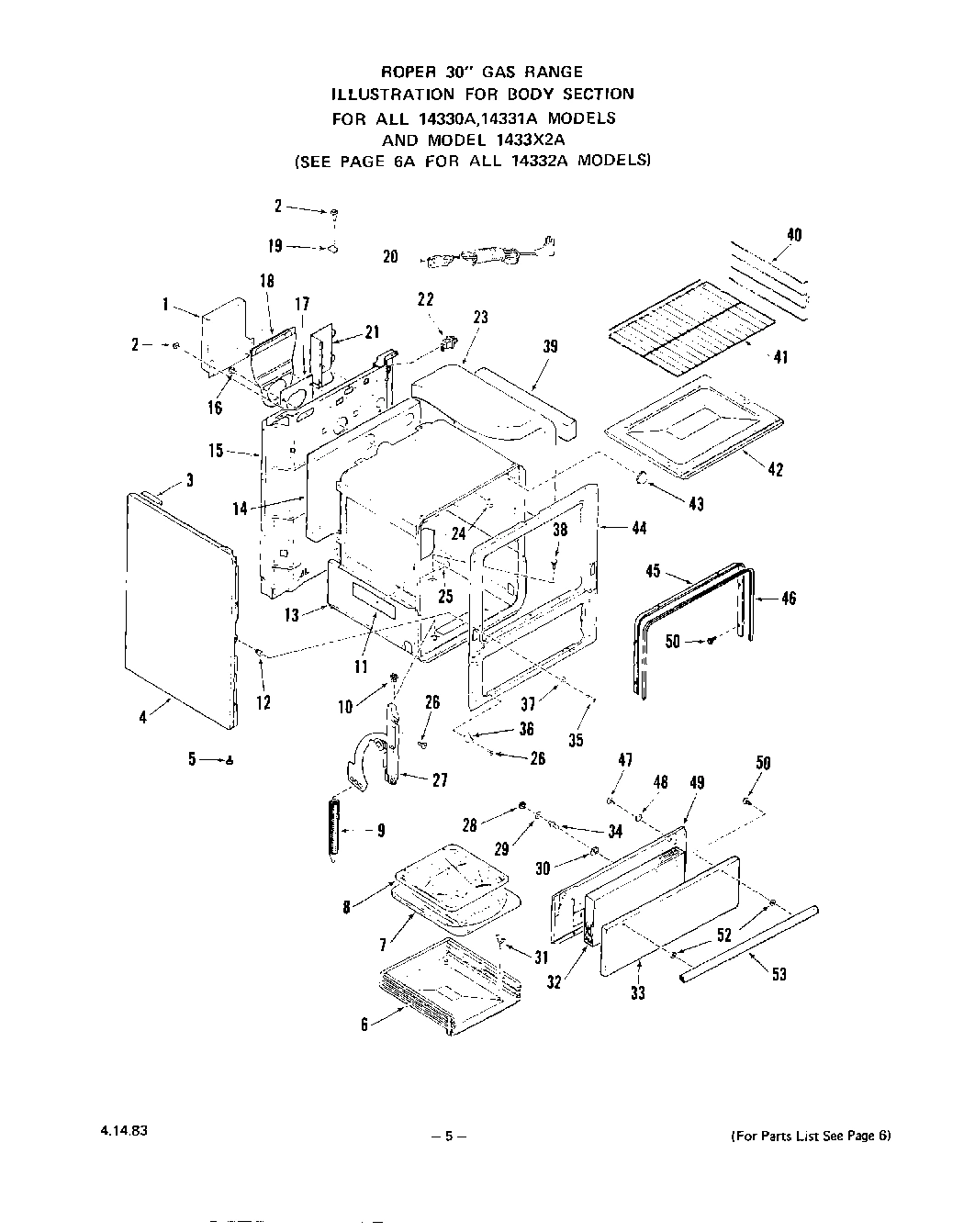

05 - SECTION

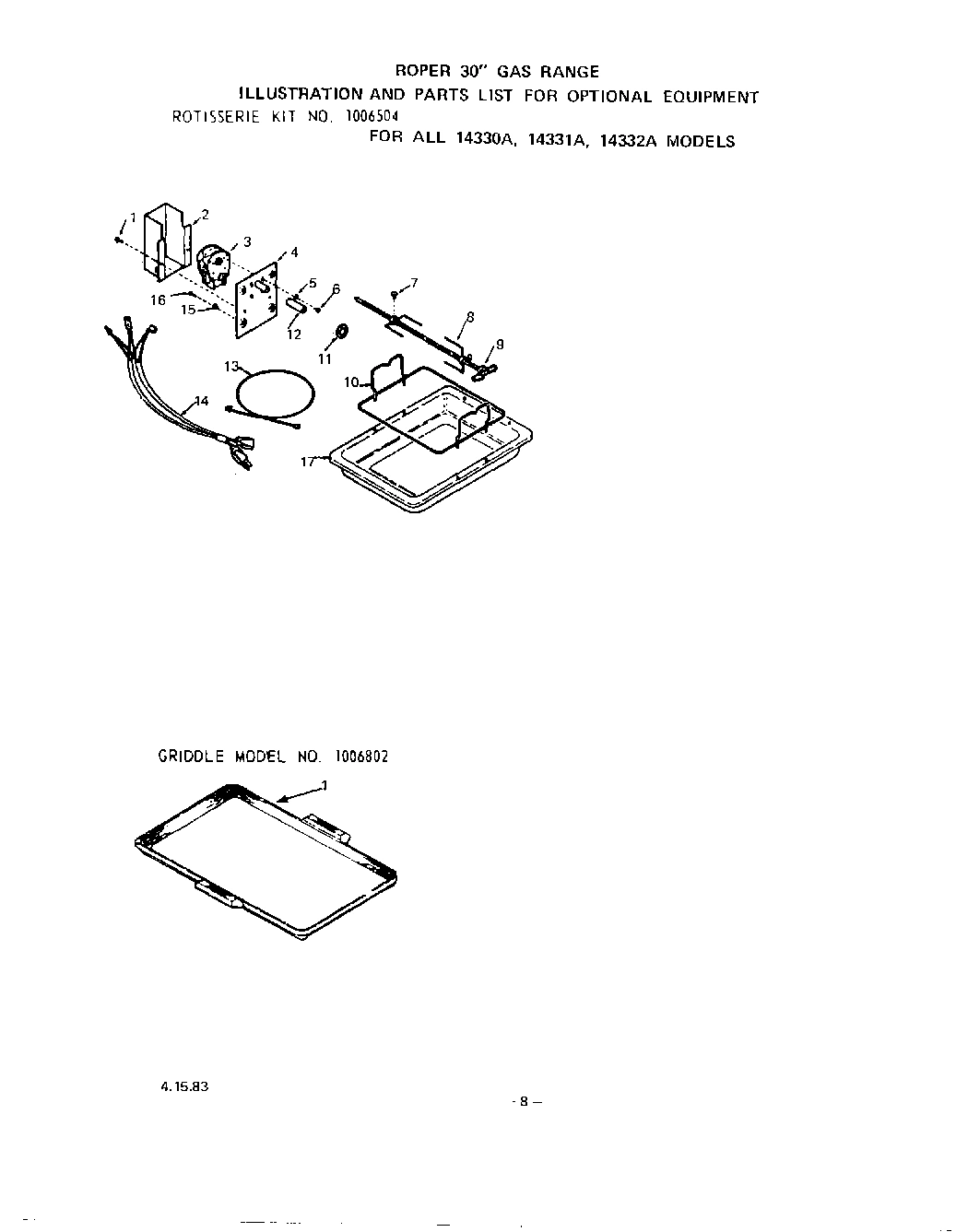

08 - SECTION

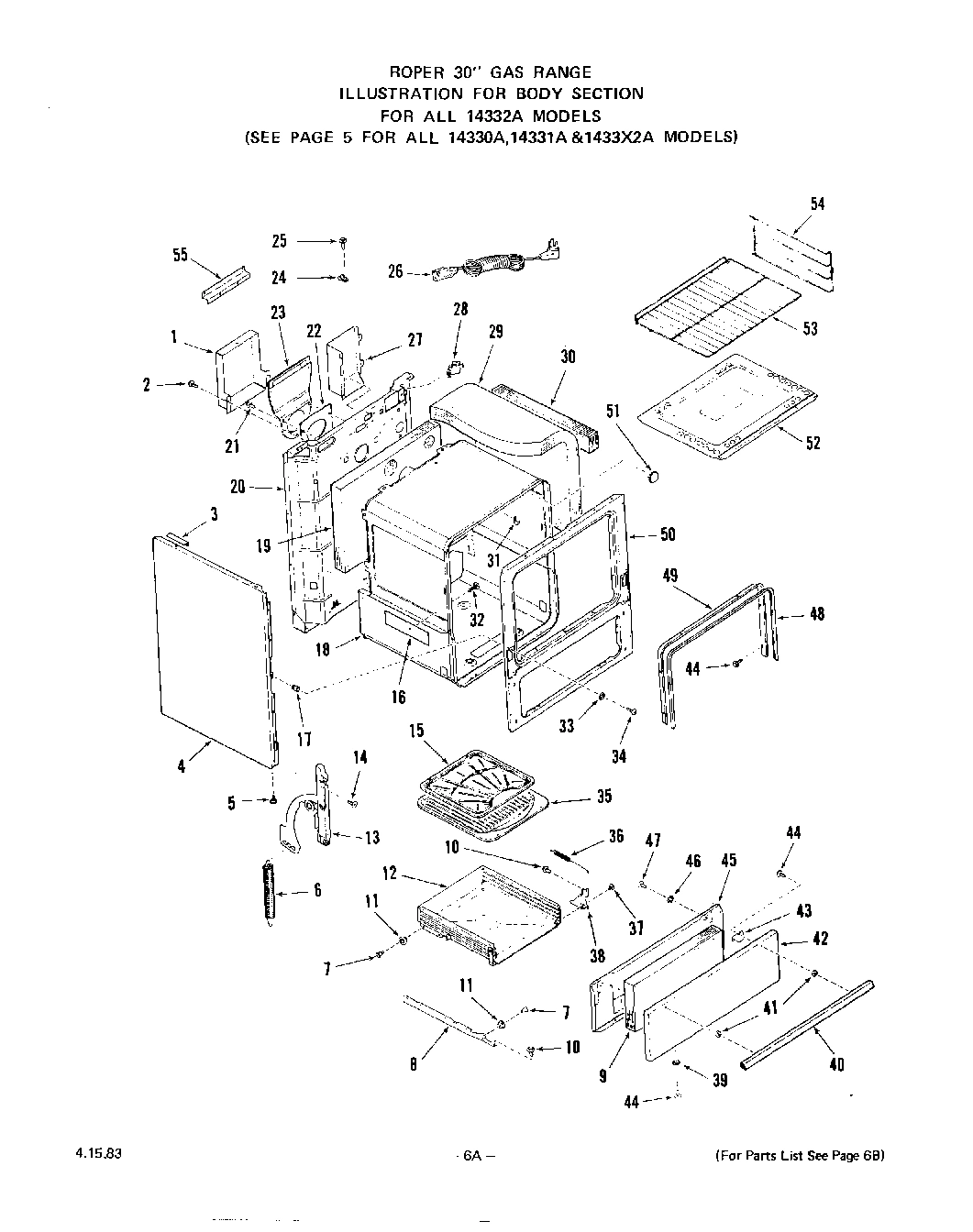

06 - OVEN DOOR

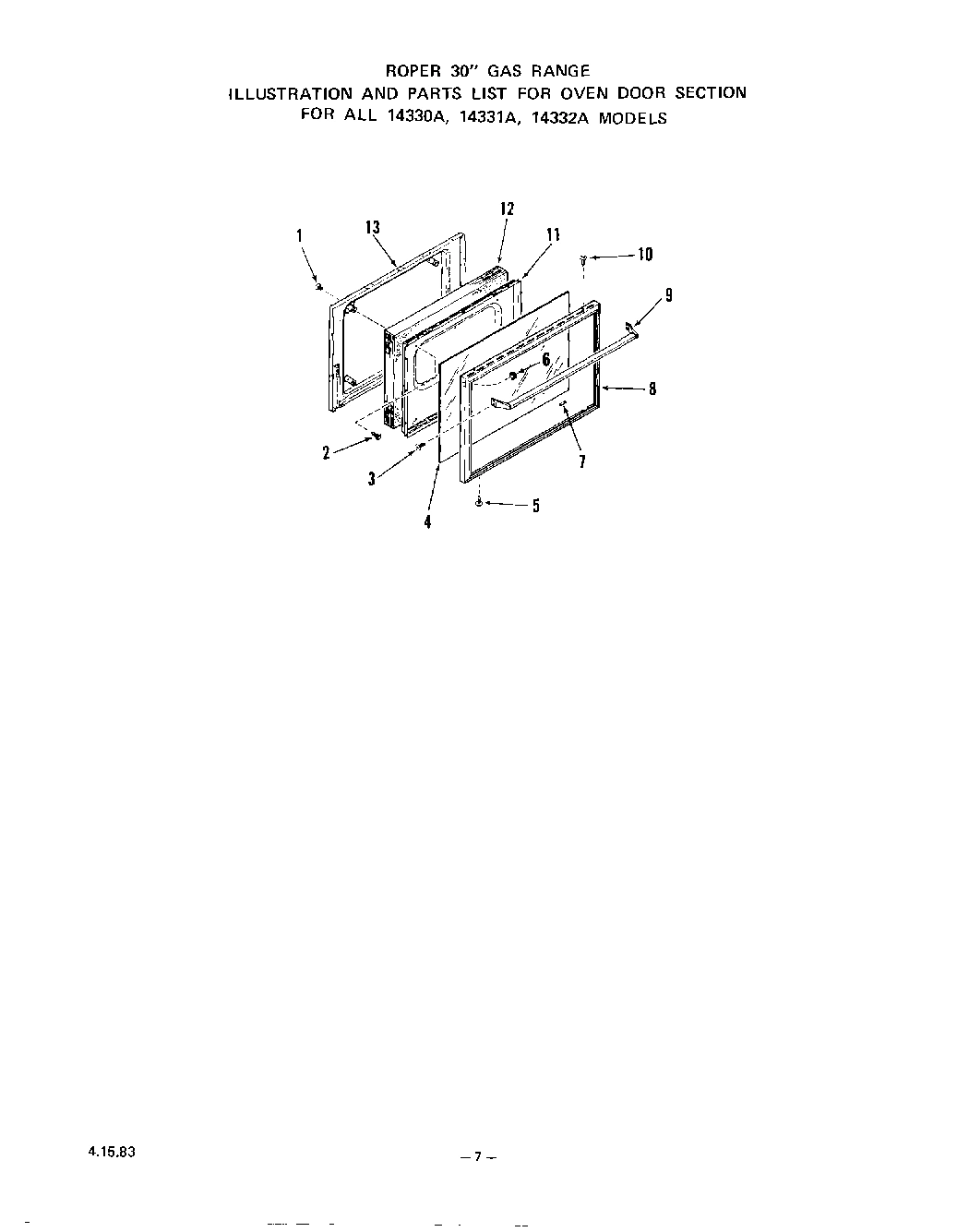

07 - OVEN DOOR

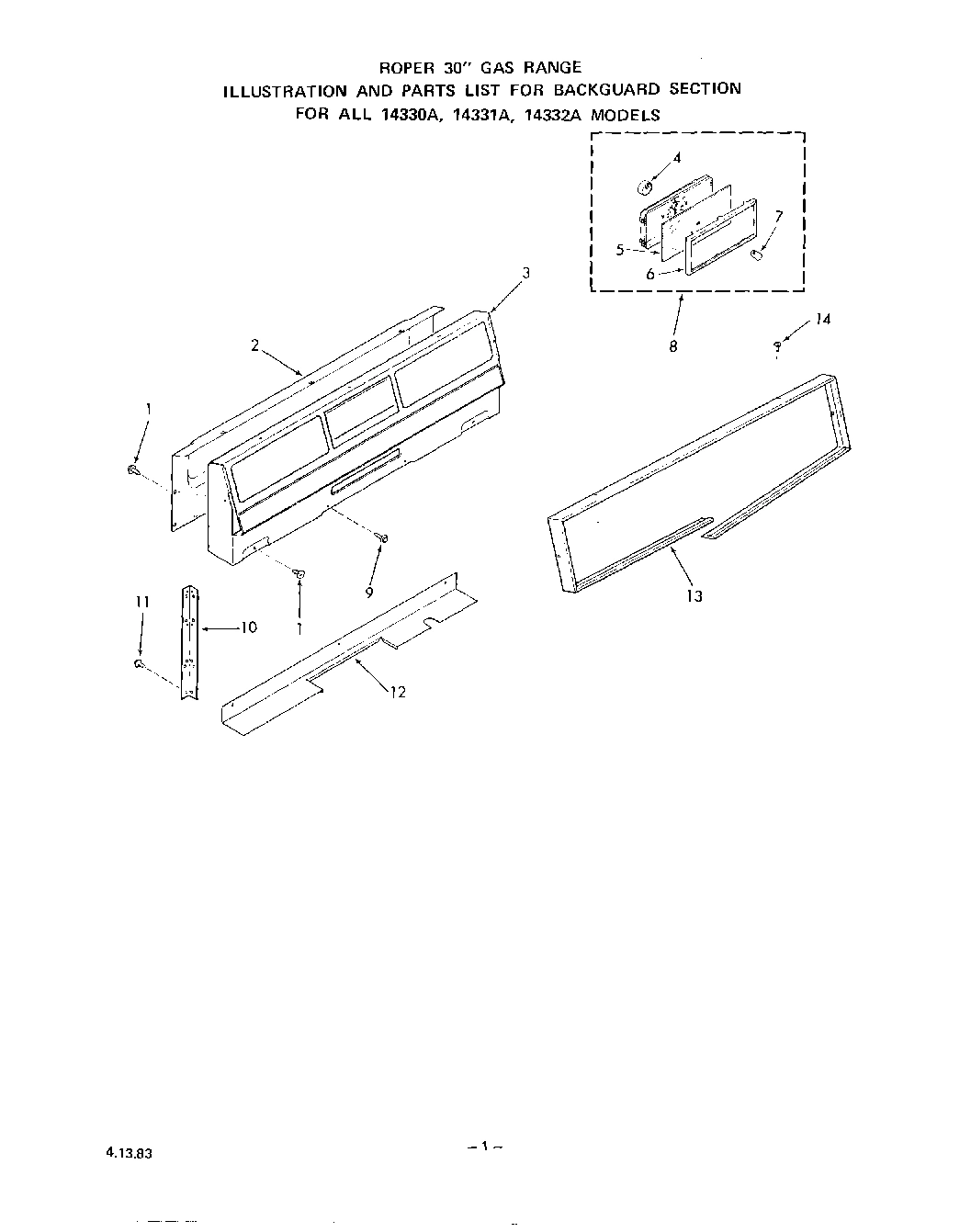

02 - MAIN TOP

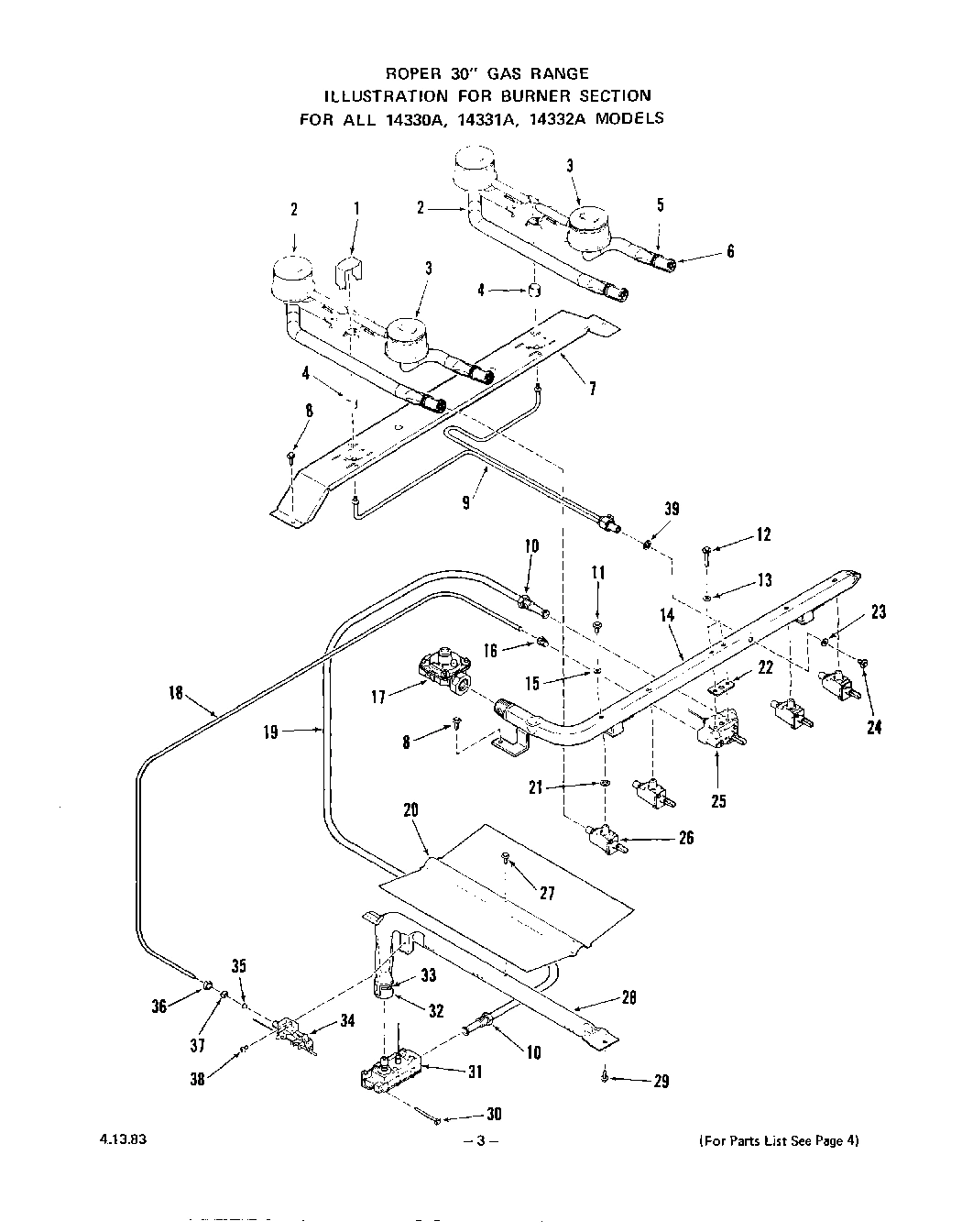

04 - BODY
Common parts from model Whirlpool 1433^1A GAS RANGE
xSwitch (For Key No. 352) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8343A45 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI8341A17 Contact Us For Availability
1
Shield - Flue Deflector WPL 296011 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
2
Spill Bowl (4 Req) WPL 322888 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Wire Cover-Backguard WPL 320767 Contact Us For Availability
2
Rear Top Burner (Inc`s 5 & 6) WPL 310197 Contact Us For Availability
3
Spacer-Main Top WPL 303513 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Backguard Crosstie WPL 324566 Contact Us For Availability
3
Front Top Burner (Inc`s 5 & 6) WPL 310196 Contact Us For Availability
4
Hinge (Right) WPL 323404 Contact Us For Availability
4
Hinge (Left) WPL 323405 Contact Us For Availability
4
Body Side (White-Right) WPL 323084 Contact Us For Availability
4
Body Side (White-Left) WPL 323085 Contact Us For Availability
4
Body Side (Wheat-Right) WPL 323090 Contact Us For Availability
4
Body Side (Wheat-Left) WPL 323091 Contact Us For Availability
4
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
4
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
4
Body Side (Black-Right) WPL 325806 Contact Us For Availability
4
Body Side (Black-Left) WPL 325807 Contact Us For Availability
4
Mounting Bracket-Rotisserie Motor WPL 282920 Contact Us For Availability
4
Glass-Oven Door WPL 320736 Contact Us For Availability
4
Clock Motor WPL 283296 Contact Us For Availability
4
Cup-Pilot WPL 308292 Contact Us For Availability
5
Main Top (White) WPL 316813 Contact Us For Availability
5
Main Top (Almond) WPL 316814 Contact Us For Availability
5
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
5
Main Top (Chrome) WPL 322876 Contact Us For Availability
5
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
5
Clock Glass WPL 284183 Contact Us For Availability
5
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
6
Keps Nut 8-32 WPL 239764 Contact Us For Availability
6
Broiler Drawer WPL 305259 Contact Us For Availability
6
Spring-Oven Door (Lt. or Rt.) WPL 308735 Contact Us For Availability
6
Screw 8-32x1/4`` WPL 70655 Contact Us For Availability
6
Air Shutter WPL 301910 Contact Us For Availability
7
Strike (Rt. or Lt.) WPL 299784 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Shoulder Rivet WPL 70275 Contact Us For Availability
7
Cushion-Door Glass WPL 112370 Contact Us For Availability
7
Knob-Clock (Start & Stop Time) WPL 109225 Contact Us For Availability
7
Support-Top Burner WPL 308297 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Broiler Drawer Guide (Inc`s. 7 & 11) (Right) WPL 296327 Contact Us For Availability
8
Frame-Door Glass WPL 296473 Contact Us For Availability
8
Clock W/4 Hr. Timer (Inc`s. 4-7) WPL 315261 Contact Us For Availability
9
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Handle-Oven Door WPL 303342 Contact Us For Availability
9
Pilot w/Filter WPL 323912 Contact Us For Availability
10
Nut-Retainer (2 Required) WPL 304980 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
10
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
10
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
11
End Cap-Manifold Panel-All Models Except 1433 WPL 318258 Contact Us For Availability
11
End Cap-Manifold Panel-All Models Except 1433 WPL 318259 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Roller WPL 69006 Contact Us For Availability
11
Retainer-Oven Door Insulation WPL 320735 Contact Us For Availability
11
Mounting Screw (Inc`s 15) WPL 311455 Contact Us For Availability
12
Trim-Manifold Panel - All Models Except 1433X WPL 322873 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Broiler Drawer (Inc`s. 7 & 11) WPL 303904 Contact Us For Availability
12
Insulation-Oven Door WPL 296142 Contact Us For Availability
12
Bottom-Wire Cover WPL 296569 Contact Us For Availability
12
Mounting Screw (Inc`s 13) WPL 318478 Contact Us For Availability
13
Catch - Main Top Strike WPL 24667 Contact Us For Availability
13
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
13
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
13
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321951 Contact Us For Availability
13
Fixture Wire Lead (With 1/4`` Faston & Eyelet WPL 321952 Contact Us For Availability
13
fixture wire lead WPL ARI8342A81 Contact Us For Availability
13
Flue Collar Kit (Optional) WPL 1002100 Contact Us For Availability
13
Lining-Oven Door WPL 321411 Contact Us For Availability
13
xGas Care & Use Guide WPL 324000 Contact Us For Availability
13
xOperating Guide WPL 324129 Contact Us For Availability
13
xInstallation & Reference Guide WPL 324789 Contact Us For Availability
13
xRepair Parts Manual WPL 325822 Contact Us For Availability
13
Bezel-Backguard WPL 310603 Contact Us For Availability
13
Gasket WPL 318658 Contact Us For Availability
14
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
14
Manifold Panel (All Models Except 1433X1A, 14 WPL 322807 Contact Us For Availability
14
Manifold Panel (Model 1433X1A, 1433X2A) WPL 324537 Contact Us For Availability
14
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Manifold Pipe WPL 323468 Contact Us For Availability
15
Knob-Gas Valve (4 Req) (All 14331A, 14332A Mo WPL 314773 Contact Us For Availability
15
Knob-Gas Valve (4 Req) (All 14330A Models) WPL 320904 Contact Us For Availability
15
Broiler Pan Grid WPL 313071 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
Gasket WPL 304241 Contact Us For Availability
16
Knob-Oven Thermostat (All 14331A, 14332A Mode WPL 318488 Contact Us For Availability
16
Knob-Oven Thermostat (All 14330A Models) WPL 322170 Contact Us For Availability
16
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
16
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
17
Burner Box Bottom WPL 308300 Contact Us For Availability
17
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
17
Pressure Regulator WPL 324529 Contact Us For Availability
18
Oven Body WPL 323854 Contact Us For Availability
18
Tubing 3/16`` WPL 322446 Contact Us For Availability
19
Insulation - Oven Back WPL 296140 Contact Us For Availability
19
Tubing 3/8`` WPL 295037 Contact Us For Availability
20
Main Back WPL 324046 Contact Us For Availability
20
Baffle - Oven Burner WPL 302729 Contact Us For Availability
21
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
21
Silicone Rubber Gasket (For 26) WPL 313563 Contact Us For Availability
22
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
22
Silicone Rubber Gasket (For 25) WPL 318657 Contact Us For Availability
23
Flue Deflector WPL 300917 Contact Us For Availability
23
Gasket WPL 323915 Contact Us For Availability
24
Clip WPL 106767 Contact Us For Availability
24
Mounting Screw (Inc`s 23) WPL 323914 Contact Us For Availability
25
Oven Thermostat (Inc`s 22) WPL 324757 Contact Us For Availability
26
Range Service Cord WPL 235822 Contact Us For Availability
26
Gas Valve-4 Req. (Inc`s 11, 15, 21) WPL 318479 Contact Us For Availability
27
Wire Shield WPL 318443 Contact Us For Availability
28
Disconnect WPL 232150 Contact Us For Availability
28
Oven Burner (Inc`s 20, 32, 33) WPL 319255 Contact Us For Availability
29
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
29
Washer WPL 99279 Contact Us For Availability
29
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
30
Catch-Broiler Door Strike WPL 306961 Contact Us For Availability
30
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
31
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
31
Thumbscrew-Rt. or Lt. WPL 278797 Contact Us For Availability
31
Control Valve (Inc`s 34, 35) WPL 324078 Contact Us For Availability
32
Dart-Button Head (2 Required) WPL 296097 Contact Us For Availability
32
Air Shutter WPL 312988 Contact Us For Availability
33
Washer WPL 303963 Contact Us For Availability
33
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
34
Strike-Broiler Door WPL 24668 Contact Us For Availability
34
Pilot Only (Inc`s 35) WPL 318486 Contact Us For Availability
35
Broiler Pan WPL 290171 Contact Us For Availability
35
Orifice Cup Only (For 34) WPL 318485 Contact Us For Availability
36
Hinge-Broiler Door (Lt. or Rt.) WPL 285675 Contact Us For Availability
36
Spring - Broiler Door (Rt or Lt) WPL 67017 Contact Us For Availability
36
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
37
Shoulder Rivet WPL 305064 Contact Us For Availability
37
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
38
Shoulder Screw 10-32x1/2`` WPL 289730 Contact Us For Availability
38
Hinge - Broiler Door ( WPL 296124 Contact Us For Availability
38
WPL 296125 WPL 296125 Contact Us For Availability
38
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
39
Gasket WPL 323913 Contact Us For Availability
40
WPL 292240 WPL 292240 Contact Us For Availability
41
WPL 302343 WPL 302343 Contact Us For Availability
42
WPL 322872 WPL 322872 Contact Us For Availability
43
WPL 296137 WPL 296137 Contact Us For Availability
45
WPL 296332 WPL 296332 Contact Us For Availability
46
WPL 21067 WPL 21067 Contact Us For Availability
47
WPL 239113 WPL 239113 Contact Us For Availability
48
WPL 296102 WPL 296102 Contact Us For Availability
49
WPL 296103 WPL 296103 Contact Us For Availability
49
WPL 302267 WPL 302267 Contact Us For Availability
50
WPL 323357 WPL 323357 Contact Us For Availability
51
WPL 101063 WPL 101063 Contact Us For Availability
52
WPL 296070 WPL 296070 Contact Us For Availability
53
WPL 305408 WPL 305408 Contact Us For Availability
54
WPL 305409 WPL 305409 Contact Us For Availability
55
WPL 301624 WPL 301624 Contact Us For Availability
A1
Set-On-Griddle (Optional) WPL 1006802 Contact Us For Availability
× ![]()
